Supporting Elderly Care from Bed Positioning to Upright Rehabilitation

Older adults with reduced mobility may require more than a conventional adjustable care bed. Daily routines can involve lying, supported sitting, repositioning and, where appropriate under professional supervision, progressive upright training. This electric standing rehabilitation bed is designed to bring these different positioning requirements together on one platform.

The bed combines a 0°–70° ±5° standing function with electric backrest adjustment, leg elevation, whole-bed lifting, forward tilt and backward tilt. This wider positioning range makes it suitable for elderly rehabilitation and long-term care environments where both routine care and mobility support are required.

Progressive Standing as the Core Rehabilitation Function

Electric Tilt-Up from 0° to 70° ±5°

The complete patient support platform can be gradually raised from the horizontal position toward an upright angle of 70° ±5°. Intermediate angles can be selected during the movement rather than requiring an immediate transition to the maximum standing position.

Designed for Supervised Upright Positioning

For elderly users with limited mobility, progressive adjustment provides a practical way for rehabilitation professionals to manage the transition between lying and upright positions according to the user's individual program and tolerance.

The standing function should be used as part of a professionally supervised rehabilitation or care program rather than being treated as an independent mobility exercise.

Multi-Point Support for Greater Stability

Multiple adjustable support straps are positioned across the mattress platform to assist with stabilization as the standing angle increases. They help maintain the user's position relative to the support surface during supervised tilt-up procedures.

More Useful Between Standing Sessions

An important consideration in long-term elderly care is how useful rehabilitation equipment remains when specialized training is not taking place. This model provides independent electric bed adjustments so that it can support a wider range of everyday positions.

Backrest Adjustment for Supported Upper-Body Positioning

The back section can be adjusted from 0° to 60° ±5°. It allows the upper body to be raised without activating the complete standing platform, providing a practical position for activities such as eating, reading, communication or resting.

Leg Elevation from 0° to 35° ±5°

The leg section can be electrically adjusted from 0° to 35° ±5°. It can be used independently or together with the backrest according to different positioning requirements.

Flexible Positions Between Lying and Standing

Not every stage of elderly rehabilitation requires a fully horizontal or near-upright position. Independent back and leg movements provide intermediate configurations, increasing the practical usefulness of the bed throughout the day.

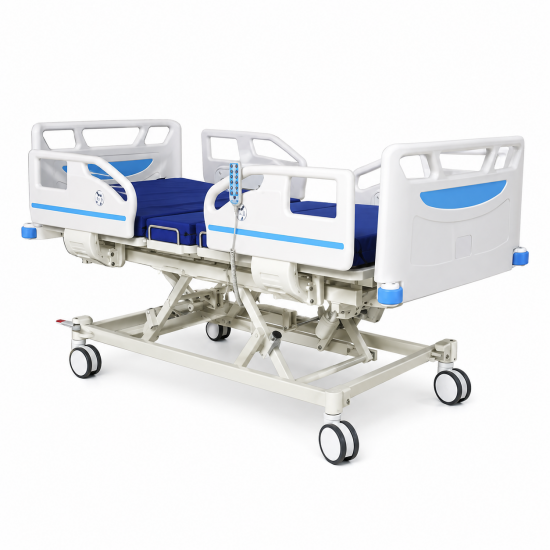

Electric Height Adjustment for Long-Term Care

Whole-Bed Lifting and Lowering

Unlike a basic standing platform with a fixed working height, this model includes electric whole-bed height adjustment. The complete support platform can be raised or lowered according to different care and rehabilitation requirements.

Supporting Caregiver Workflows

For long-term care environments, positioning requirements involve both the resident and the caregiver. Adjustable bed height provides greater flexibility when preparing the user, carrying out routine care or setting up the bed before rehabilitation activities.

The available product information confirms the electric whole-bed lifting function but does not specify its minimum and maximum height range. Buyers requiring exact height-adjustment data can confirm the selected configuration before ordering.

Forward and Backward Tilt for Additional Positioning Options

Forward Tilt Greater Than 12°

The complete bed platform provides a forward tilt angle of more than 12°. This movement changes the orientation of the whole support surface rather than adjusting only an individual mattress section.

Backward Tilt Greater Than 12°

The platform can also be tilted backward by more than 12°, providing bidirectional whole-bed positioning in addition to the primary standing function.

Expanded Positioning Beyond a Conventional Elderly Care Bed

These forward and backward tilt movements add another positioning dimension to the equipment. Together with standing, backrest, leg and height adjustments, they distinguish this model from a conventional electric Nursing Bed designed mainly for everyday resident care.

Safety-Oriented Design for Assisted Positioning

Protective ABS Side Rails

Large ABS side rails surround the patient support area and provide lateral protection during routine bed use and position changes. Their medical-style construction also makes this configuration more appropriate for professional rehabilitation and institutional elderly care environments.

Segmented Support Surface

The mattress support area is divided into articulated sections that correspond with the adjustable back and leg portions of the bed. The sections move with the underlying platform as different positions are selected.

Mobile Caster Base

The bed is supported by a wheeled base to facilitate movement and positioning within the care environment. Appropriate caster locking should be used when the bed is stationary and during rehabilitation procedures.

Where This Model Fits within Elderly Care

Senior Rehabilitation Centers

For facilities providing structured rehabilitation to older adults, the progressive standing function offers capabilities beyond those of a standard long-term care bed.

Nursing and Long-Term Care Facilities

Facilities caring for residents with different levels of mobility can use the multiple electric adjustments for everyday positioning while retaining access to supervised standing capability when required.

Post-Acute Elderly Rehabilitation

The model can also be considered for professional care environments supporting older patients through extended mobility and positioning programs following acute treatment.

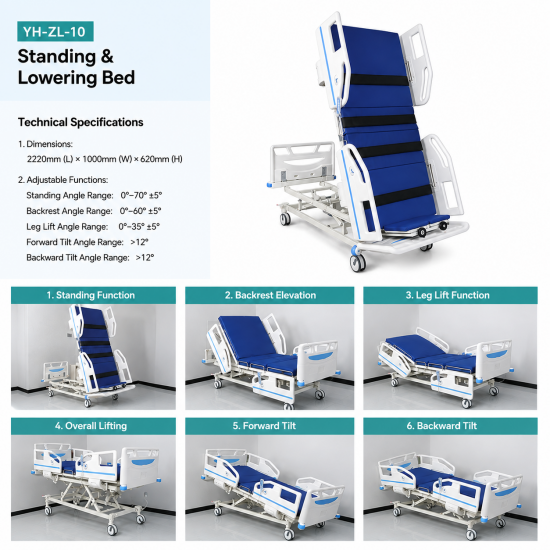

Technical Configuration

Overall Size

2220 mm (L) × 1000 mm (W) × 620 mm (H).

Standing Function

Standing Angle

0°–70° ±5°.

Individual Section Adjustment

Backrest Angle

0°–60° ±5°.

Leg Lift Angle

0°–35° ±5°.

Whole-Bed Positioning

Electric Height Adjustment

Whole-bed electric lifting and lowering.

Forward Tilt

Greater than 12°.

Backward Tilt

Greater than 12°.

When Is This Bed More Appropriate Than a Standard Elderly Care Bed?

For residents who mainly require sleeping support, backrest adjustment and routine nursing assistance, a conventional elderly care bed may be the more appropriate choice. The additional value of this model appears when the care program also includes supervised progressive standing or requires more extensive whole-bed positioning.

Its combination of six positioning functions allows buyers to select one platform for multiple stages of care instead of evaluating the product only as a standing device.

A Higher-Level Option within the Standing Bed Series

Compared with a basic Standing Bed, this model adds whole-bed height adjustment and forward/backward tilt while retaining backrest and leg positioning. It is therefore better suited to professional elderly rehabilitation environments requiring greater positioning flexibility.

For Elderly Care Projects Requiring More Than Basic Positioning

This electric standing rehabilitation bed combines everyday adjustable-bed functions with a specialized progressive standing system. Its positioning range allows it to serve as a bridge between conventional elderly care equipment and dedicated rehabilitation equipment.

For elderly care projects, rehabilitation facilities, distributors or bulk purchasing requirements, please contact us for detailed configuration information, OEM options and quotations.
