Product Overview

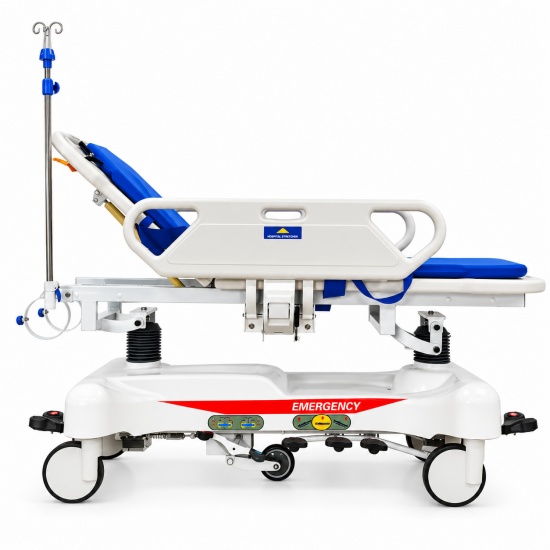

Hydraulic Patient Transfer Stretcher with Adjustable ABS Side Rails

This hydraulic patient transfer stretcher is designed for hospitals and professional healthcare facilities requiring adjustable patient positioning and convenient bedside access. It features height-adjustable ABS side rails with gas spring-damped lowering, a hydraulic lifting system and a gas spring-assisted backrest to support patient transportation and routine nursing procedures.

The stretcher combines an ABS patient platform, a carbon steel frame and a 320 kg safe working load. Its adjustable height range of 670–970 mm allows the patient platform to be positioned at different working levels, while the central braking system and retractable fifth wheel provide mobility and directional control during transportation.

Height-Adjustable ABS Side Rails

The stretcher is equipped with ABS side rails featuring a pull-up lifting and lowering mechanism. The side rails provide a protective barrier when raised and allow caregivers to access the patient platform when lowered.

The adjustable structure is designed for routine patient transportation and bedside nursing activities in professional healthcare environments.

Pull-Up Side Rail Design

The ABS side rails can be raised through a pull-up mechanism and lowered when patient access is required.

This configuration allows healthcare personnel to adjust the side rail position according to different nursing and patient transfer procedures.

ABS Engineering Plastic Construction

The side rails are manufactured from ABS engineering plastic, providing a rigid protective structure with a smooth surface.

The ABS material is suitable for use in hospital equipment requiring practical surface maintenance.

Side Rail Dimensions

• Side rail material: ABS engineering plastic
• Side rail type: Pull-up height-adjustable design
• Side rail length: 1080 mm
• Side rail height: 260 mm
• Side rail thickness: 35 mm

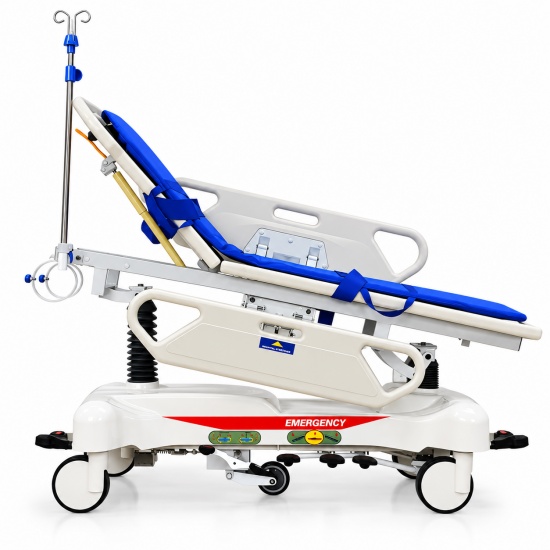

Gas Spring-Damped Side Rail Lowering

The side rail lowering mechanism incorporates gas spring damping to provide controlled movement when the rails are lowered.

The damping mechanism helps reduce abrupt lowering movement and supports smoother operation during routine nursing procedures.

Controlled Lowering Mechanism

The gas spring damping system moderates the movement of the side rails during lowering.

This configuration is designed to improve operating comfort and help protect the side rail mechanism during repeated use.

Convenient Patient Access

When the side rails are lowered, caregivers can access the patient platform more conveniently for positioning, observation and transfer preparation.

The side rails should be returned to their secured operating positions before patient transportation according to the manufacturer's instructions.

ABS Patient Platform for Hospital Care

The patient platform is manufactured from ABS engineering plastic and incorporates a split-section structure for backrest adjustment.

The ABS platform is designed to provide a practical patient support surface for hospital transportation and nursing applications.

Patient Platform Dimensions

• Overall stretcher length: 1930 mm
• Patient platform length: 1910 mm
• Patient platform width: 640 mm

Integrated Corner Handles

The ABS patient platform includes handles at its four corners.

These handles provide additional gripping positions for healthcare personnel during stretcher operation and patient transportation.

Gas Spring-Assisted Backrest Adjustment

The stretcher features an adjustable backrest operated through a gas spring-assisted mechanism.

The backrest can be raised from a horizontal position to 75° ±5°, providing different upper-body positioning options during patient care.

Single-Hand Backrest Operation

The gas spring-assisted mechanism supports convenient adjustment and can be operated with one hand.

This configuration allows caregivers to adjust the backrest without using an electric lifting motor.

Backrest Adjustment Specifications

• Backrest adjustment: 0–75° ±5°
• Adjustment mechanism: Gas spring-assisted
• Operation: Single-hand adjustment

Hydraulic Height Adjustment for Bedside Care

The stretcher is equipped with a hydraulic lifting system that provides overall height adjustment between 670 mm and 970 mm.

The adjustable platform height allows healthcare personnel to select different working levels during patient transportation and bedside nursing procedures.

Hydraulic Lifting Range

• Minimum height: 670 mm
• Maximum height: 970 mm
• Total height adjustment range: 300 mm
• Lifting mechanism: Hydraulic cylinder system

Height Adjustment for Patient Transfer Preparation

The hydraulic lifting system allows the stretcher to be positioned at different heights when preparing patient transfers between compatible hospital beds and other medical equipment.

Healthcare facilities should evaluate the height range against the dimensions of their existing patient care equipment.

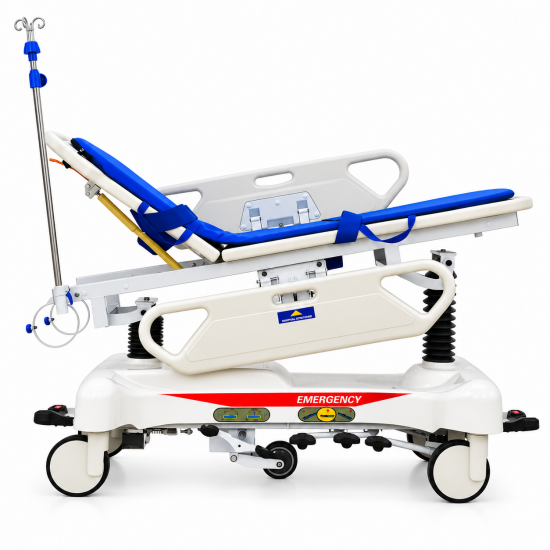

Front and Rear Platform Tilting

The stretcher supports front-to-rear platform inclination adjustment within a specified range of 0–18°.

This adjustment provides an additional positioning option for appropriate hospital care procedures.

The exact directional limits should be confirmed according to the manufacturer's technical instructions.

Central Braking and Patient Transportation System

The stretcher is equipped with four 200 mm main casters and a central locking braking system.

The braking mechanism allows all four main casters to be locked simultaneously through a foot-operated control.

Four 200 mm Central Locking Casters

The four main casters support movement through hospital corridors, wards and designated patient transportation areas.

Four-Corner Brake Controls

Brake control mechanisms are positioned at the four corners of the stretcher.

This arrangement allows healthcare personnel to access the braking system from different positions around the trolley.

Independent Retractable Fifth Wheel

An independent retractable fifth wheel is installed beneath the stretcher chassis.

Control pedals are provided on both sides of the stretcher.

When the fifth wheel is retracted, the stretcher can move freely on its four main casters. When engaged, the fifth wheel provides directional guidance during straight-line transportation.

Carbon Steel Frame and Protective Finish

The stretcher frame is manufactured from high-quality carbon structural steel sections joined through welding.

The steel frame undergoes surface rust removal followed by electrostatic resin powder coating.

This treatment provides a protective surface finish with corrosion resistance and a clean appearance suitable for hospital equipment.

320 kg Safe Working Load

The stretcher has a specified safe working load of 320 kg.

This specification allows hospitals and medical equipment distributors to evaluate the stretcher for patient transportation requirements involving a higher-capacity platform.

Integrated Lower Storage Tray

An integrated storage tray is installed beneath the patient platform.

The tray provides space for compatible medical accessories, including an oxygen cylinder.

The specified storage tray load capacity is 10 kg.

Water-Resistant Mattress with Washable Cover

The stretcher includes a mattress with a water-resistant fabric surface treatment.

The mattress cover features a zipper and can be removed for washing.

This configuration supports routine mattress cleaning and maintenance in professional healthcare environments.

Technical Specifications

General Specifications

• Product Type: Hydraulic Patient Transfer Stretcher
• Overall Dimensions: 1930 × 640 × 670–970 mm
• Patient Platform Dimensions: 1910 × 640 mm
• Height Adjustment: 670–970 mm
• Safe Working Load: 320 kg
• Frame Material: Carbon structural steel
• Surface Treatment: Electrostatic resin powder coating
• Patient Platform Material: ABS engineering plastic

Adjustment Functions

• Hydraulic Lifting: Hydraulic cylinder system
• Backrest Adjustment: 0–75° ±5°
• Backrest Mechanism: Gas spring-assisted
• Backrest Operation: Single-hand adjustment
• Front and Rear Platform Tilting: 0–18°

Side Rails and Mobility

• Side Rail Material: ABS engineering plastic
• Side Rail Type: Pull-up height-adjustable design
• Side Rail Dimensions: 1080 × 260 × 35 mm
• Side Rail Lowering: Gas spring-damped
• Main Casters: 4 × 200 mm
• Braking System: Central locking system
• Brake Control: Four-corner control arrangement
• Directional System: Independent retractable fifth wheel
• Fifth Wheel Controls: Both sides of the stretcher

Accessories and Packaging

• Lower Storage Tray: Integrated design
• Storage Tray Load Capacity: 10 kg
• Mattress: Water-resistant fabric with removable washable cover
• Wooden Crate Dimensions: 2020 × 835 × 760 mm
• Net Weight: 95 kg
• Gross Weight: 145 kg

Applications in Hospitals and Professional Care Facilities

Hospital Bedside Nursing

The adjustable ABS side rails and gas spring-assisted backrest provide practical features for bedside patient positioning and nursing procedures.

Patient Transfer Preparation

The hydraulic height adjustment and lowering side rails allow caregivers to prepare the stretcher for transfers between compatible hospital beds and other medical equipment.

Emergency Departments

The mobile stretcher structure, adjustable patient platform and central braking system provide features that emergency departments can evaluate for patient transportation requirements.

Professional Nursing Facilities

The adjustable side rails, removable mattress cover and hydraulic lifting system provide a configuration that professional nursing facilities can consider for patient transportation and care operations.
