Orthopedic Traction Bed with Independent Lower-Limb Positioning

Orthopedic recovery often requires more precise positioning than a conventional hospital bed can provide. This three-function orthopedic traction bed is designed around that requirement, combining manual backrest adjustment, independent left and right leg positioning, adjustable bed height and a full stainless steel traction frame in one specialized care platform.

The separated lower-limb design is particularly important for orthopedic applications. Instead of moving both legs together, caregivers can adjust either leg section independently according to the required position. This makes the bed suitable for orthopedic wards, fracture care, postoperative recovery and rehabilitation environments where individualized limb positioning may be required.

Independent Adjustment for Each Lower Limb

One of the defining features of this model is its divided leg platform. The left and right leg sections have separate mechanical adjustment systems rather than sharing a single synchronized movement.

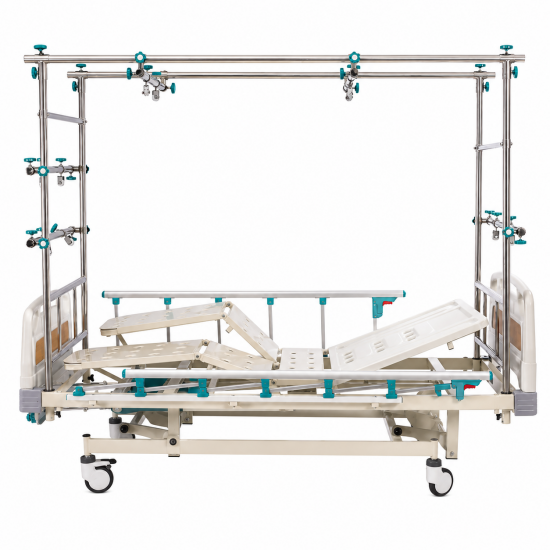

Two Cranks for Separate Leg Positioning

Each lower-limb section is controlled by its own manual crank mechanism and can be elevated through an angle of approximately 0–40°. This arrangement allows one leg to remain relatively flat while the other is raised, or enables the two sides to be positioned differently according to care requirements.

Compared with a conventional three-function Hospital Bed, this independent adjustment provides greater flexibility for orthopedic patient positioning and lower-limb rehabilitation.

Manual Backrest and Bed Height Adjustment

Backrest Elevation from 0–70°

The backrest can be manually adjusted between approximately 0° and 70°. This allows caregivers to change the patient's upper-body position for resting, eating, communication and routine bedside care without transferring the patient to another support surface.

530–730 mm Adjustable Working Height

The bed platform can be raised from approximately 530 mm to 730 mm. The 200 mm height adjustment range helps caregivers select a more suitable working level during different nursing and rehabilitation procedures.

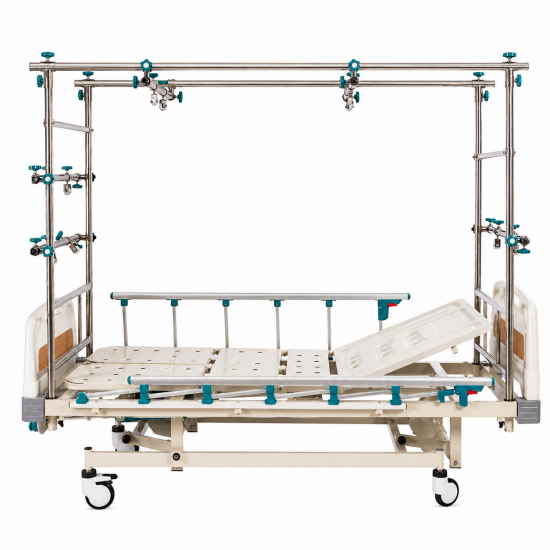

Four-Post Stainless Steel Traction Frame

For orthopedic applications requiring a dedicated support structure, the bed is surrounded by a full stainless steel traction frame. Four vertical posts support horizontal rails positioned above and along the sides of the mattress platform, creating a stable framework for compatible orthopedic traction components.

Flexible Accessory Positioning

Multiple adjustable clamps and mounting points are distributed around the traction structure. Their positions can be changed according to the required setup, giving healthcare facilities greater flexibility when configuring compatible traction accessories.

Stainless Steel for Long-Term Clinical Use

The traction structure uses stainless steel rather than painted ordinary steel. This provides good corrosion resistance, structural durability and convenient surface cleaning, making it suitable for repeated use in orthopedic and rehabilitation departments.

Built for Repeated Hospital and Rehabilitation Use

The main bed frame is manufactured from epoxy-coated steel and supports a segmented mattress platform. The overall structure is designed for repeated positioning adjustments and routine clinical use.

Foldable Aluminum Alloy Side Rails

Aluminum alloy side rails are installed on both sides of the bed. They provide bedside protection when raised and can be folded down when caregivers require closer access to the patient.

Central Braking Medical Casters

Four medical casters allow the bed to be repositioned within the care environment. A central braking system helps staff secure the bed after it has been moved into the required position.

Suitable for Orthopedic Recovery and Rehabilitation Environments

This model is particularly relevant where patient care involves both orthopedic positioning and longer recovery periods. Its configuration can be used in orthopedic wards, trauma departments, rehabilitation hospitals and postoperative recovery areas.

For healthcare facilities managing patients with different lower-limb positioning requirements, the ability to adjust the two leg sections independently provides an important functional distinction from a standard manual hospital bed.

Technical Specifications

Bed Dimensions

Overall Dimensions: 2235 × 960 mm

Mattress Platform: 1910 × 830 mm

Bed Height: 530–730 mm

Net Weight: Approximately 152 kg

Load Capacity: Up to 250 kg

Positioning Functions

Backrest Adjustment: 0–70°

Left Leg Adjustment: 0–40°

Right Leg Adjustment: 0–40°

Leg Control: Independent manual adjustment for left and right sections

Height Adjustment: 530–730 mm

Main Components

Bed Frame: Epoxy-coated steel

Traction Frame: Full stainless steel construction

Side Rails: Foldable aluminum alloy

Head and Foot Boards: PP components

Casters: Four medical casters

Braking System: Central brake

A Practical Orthopedic Bed for Different Care Requirements

The value of this orthopedic traction bed comes from the combination of a dedicated traction structure and more flexible patient positioning. Independent left and right leg adjustment allows the bed to accommodate lower-limb positioning requirements that cannot be achieved as conveniently with a conventional synchronized leg platform.

For hospitals, rehabilitation facilities and medical equipment distributors sourcing orthopedic care equipment, different configurations and compatible accessories can be supplied according to project requirements. Please contact us for configuration details, quotation information and bulk procurement requirements.
